Sulphur Cake - Raw material

Sulphur Cake for Fertilizer Manufacturing

Sulphur Cake is a high-concentration sulphur raw material intended for professional fertilizer production. It can be incorporated as a sulphur component into fertilizer formulations in which organic raw materials, mineral nutrients and other functional ingredients are blended before further processing.

The product is particularly relevant for manufacturers of organic and organo-mineral fertilizers looking to introduce a concentrated sulphur source into their formulation. According to the product specification, Sulphur Cake contains 96% sulphur on a dry-matter basis and has a dry-matter content above 70%.

This combination makes the product relevant as a sulphur raw material for fertilizer manufacturing, where nutrient concentration, formulation flexibility and the contribution of individual raw materials must be considered when designing the final fertilizer.

A Sulphur Ingredient for Organic and Organo-Mineral Fertilizers

Modern fertilizer manufacturing frequently involves combining different nutrient sources to create a defined final nutrient composition. Organic raw materials can provide organic matter and nutrients, while mineral ingredients can be incorporated to adjust or increase specific nutrient concentrations.

Sulphur Cake can be used within this type of formulation strategy as a concentrated sulphur component. Rather than being positioned primarily as a finished fertilizer for direct field application, the product is intended for use as a raw material that fertilizer manufacturers can incorporate into their own formulations.

Potential applications include:

• Organic fertilizer formulations
• Organo-mineral fertilizers
• Compound fertilizer formulations
• Specialty fertilizer blends
• Sulphur-containing fertilizer granules
• Custom nutrient formulations
• Fertilizer products requiring an additional sulphur component

96% Sulphur on a Dry-Matter Basis

The product specification states a sulphur concentration of 96% on a dry-matter basis. The specified dry-matter content is above 70%.

For fertilizer formulators, it is important to distinguish between sulphur concentration on a dry-matter basis and sulphur concentration in the product as supplied. A value expressed on a dry-matter basis should not automatically be interpreted as the same concentration in the total delivered product.

When calculating the contribution of Sulphur Cake to a finished fertilizer, manufacturers should therefore use the actual batch-specific dry-matter content together with the sulphur concentration stated on a dry-matter basis.

This distinction is particularly important when targeting a defined sulphur declaration or nutrient composition in the final fertilizer.

Concentrated Sulphur for Flexible Fertilizer Formulation

A concentrated nutrient source can provide an important formulation advantage when manufacturers need to introduce a specific nutrient without unnecessarily diluting the other components of the formulation.

Because Sulphur Cake contains a high concentration of sulphur on a dry-matter basis, relatively small quantities of sulphur-containing raw material may be required compared with lower-concentration sulphur sources, depending on the targeted composition of the finished product.

This can provide fertilizer formulators with additional flexibility when balancing:

• Target sulphur concentration
• Organic raw-material content
• Nitrogen, phosphorus and potassium levels
• Other mineral nutrients
• Moisture and dry-matter balance
• Final formulation mass
• Physical processing requirements

The actual formulation should always be determined from the complete nutrient matrix and the analytical characteristics of all raw materials used.

Designed for Fertilizer Producers, Not Only for Direct Application

The commercial value of Sulphur Cake for a fertilizer manufacturer differs from the way a finished sulphur fertilizer is evaluated by a grower.

For the manufacturer, the first consideration is whether the raw material can provide the required sulphur contribution within the intended production and formulation system. This means evaluating not only the sulphur concentration but also dry matter, physical form, moisture contribution, compatibility with other ingredients and the subsequent production process.

Sulphur Cake is therefore positioned as an ingredient for fertilizer production. Manufacturers can evaluate its inclusion alongside organic materials and other mineral nutrient sources when developing their own finished fertilizer products.

Integration into Granulated Fertilizer Production

Many organic and organo-mineral fertilizer production systems combine multiple raw materials before the mixture is converted into a finished granule or pellet.

Sulphur Cake can be evaluated as a sulphur component for formulations that are subsequently processed into a finished fertilizer granule. The appropriate incorporation method and inclusion level depend on the manufacturer's production technology and the characteristics of the complete formulation.

Relevant processing considerations include:

• Homogeneous distribution within the formulation
• Moisture and dry-matter balance
• Compatibility with organic raw materials
• Compatibility with other mineral ingredients
• Mixing sequence
• Granulation or pelletizing conditions
• Drying requirements
• Required physical properties of the finished granule

Processing behaviour should be validated by the fertilizer manufacturer under its own production conditions, particularly when introducing the material into an existing granulation or pelletizing process.

Formulating Sulphur-Enriched Fertilizers

Sulphur is an essential plant nutrient and is involved in important physiological and biochemical processes in crops. Fertilizer manufacturers can incorporate sulphur into multi-nutrient products where a sulphur contribution forms part of the intended nutrient specification.

Sulphur Cake provides manufacturers with a concentrated raw material for developing fertilizers with an additional sulphur component. This can be relevant in formulations where sulphur is combined with nitrogen, phosphorus, potassium, organic matter or other nutrients.

The final nutrient declaration and agronomic positioning of the finished fertilizer remain dependent on the complete formulation, the chemical form of the nutrients, applicable analytical methods and relevant fertilizer legislation.

Understanding Elemental Sulphur in Fertilizer Formulation

When elemental sulphur is used as a fertilizer nutrient source, its behaviour differs from that of sulphate-based sulphur sources.

Plants primarily take up sulphur from the soil in sulphate form. Elemental sulphur must first undergo oxidation in the soil before its sulphur becomes available in this form. This conversion is primarily a biological process involving soil microorganisms.

The rate of elemental sulphur oxidation is not fixed. It can be influenced by factors including particle size and dispersion, soil temperature, moisture, soil properties and microbial activity.

Fertilizer manufacturers should therefore avoid treating total sulphur concentration and immediate plant-available sulphur as equivalent parameters. A high total sulphur concentration describes the nutrient concentration of the raw material, but does not by itself determine the rate at which sulphur becomes plant available after application of the finished fertilizer.

Particle Distribution Matters

The agronomic performance of elemental sulphur is influenced not only by the amount of sulphur applied but also by its physical presentation and distribution after application.

Scientific literature indicates that smaller elemental sulphur particles generally oxidize more rapidly than larger particles when adequately dispersed in soil. Conversely, concentrating elemental sulphur within fertilizer granules can restrict its contact with the surrounding soil and may slow oxidation.

This is an important consideration for manufacturers developing granulated fertilizers containing elemental sulphur. The characteristics of the sulphur-containing raw material, its distribution through the fertilizer matrix and the behaviour of the finished granule can all influence the subsequent agronomic performance.

For this reason, no universal claim regarding sulphur release rate or plant availability should be made solely from the total sulphur concentration of the raw material.

Elemental Sulphur versus Sulphate Sources

Elemental sulphur and sulphate-based fertilizers should not automatically be considered nutritionally interchangeable.

Sulphate is already in the principal form taken up by plant roots and can therefore provide readily available sulphur. Elemental sulphur requires oxidation to sulphate before root uptake.

Elemental sulphur, however, offers a very high potential sulphur concentration. This can be attractive to fertilizer manufacturers because a concentrated sulphur source can occupy less of the formulation than lower-concentration nutrient sources.

The appropriate sulphur source therefore depends on the intended fertilizer concept. Manufacturers may evaluate factors including:

• Total sulphur concentration
• Desired sulphur availability profile
• Particle characteristics
• Finished fertilizer formulation
• Granulation technology
• Other sulphur sources in the formulation
• Target crops and application conditions
• Cost per unit of sulphur

Potential Role in Organo-Mineral Fertilizers

Organo-mineral fertilizer manufacturing allows organic raw materials and concentrated mineral nutrient sources to be combined within a single formulation.

In this context, Sulphur Cake can provide the sulphur component while other ingredients contribute organic matter, nitrogen, phosphorus, potassium, calcium, magnesium or other nutrients according to the targeted product specification.

This approach gives fertilizer manufacturers the possibility to develop differentiated nutrient formulations without relying on a single raw material to provide the complete nutrient profile.

The suitability of Sulphur Cake for a particular organo-mineral formulation should be evaluated within the complete formulation and manufacturing process.

Custom Fertilizer Formulation

Different fertilizer markets, crops and soil conditions can require different nutrient ratios. Fertilizer producers therefore increasingly develop formulations with specific NPK and secondary-nutrient profiles rather than relying exclusively on standard formulations.

A concentrated sulphur raw material can be useful in this type of formulation environment because the manufacturer can determine the required inclusion according to the targeted sulphur concentration of the finished product.

When calculating an inclusion rate, relevant parameters include:

• Target sulphur concentration in the finished fertilizer
• Actual dry-matter content of the Sulphur Cake
• Sulphur concentration on a dry-matter basis
• Sulphur supplied by other raw materials
• Total batch mass
• Moisture changes during processing and drying

Batch-specific analytical data should be used for final commercial formulations and nutrient declarations.

Product Characteristics

• Product: Sulphur Cake
• Chemical name: Sulphur
• Primary application: fertilizer use
• Dry matter: >70%
• Sulphur concentration: 96% on dry matter
• pH: >7.0–9.0
• Conductivity: 2,000 µS/cm
• Density: 1.5–1.6 g/cm³

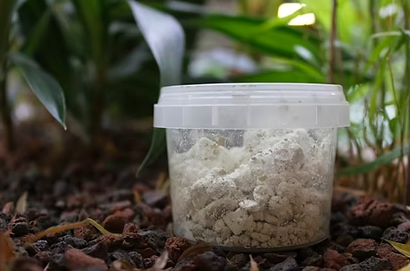

• Appearance: solid
• Colour: whitish to yellowish
• Odour: characteristic

Handling in Fertilizer Manufacturing

As with any fertilizer raw material, Sulphur Cake should be evaluated not only from a nutrient perspective but also from a production and handling perspective.

The product is supplied as a solid material. Its actual behaviour during dosing, mixing, conveying and granulation depends on the equipment, other ingredients, moisture conditions and process configuration used by the fertilizer manufacturer.

Before full-scale implementation, manufacturers should establish appropriate handling and dosing procedures and validate the material within their own production process.

Storage

According to the product specification, Sulphur Cake should be stored in its original packaging, protected from rain and harsh environmental conditions, in a dry and well-ventilated environment.

The specified storage temperature is 5–35°C. Appropriate occupational hygiene, handling procedures and applicable safety documentation should be followed during storage and processing.

Packaging and Industrial Supply

Sulphur Cake is intended for industrial and fertilizer use and is suitable for professional fertilizer manufacturers requiring a sulphur-containing raw material for further processing.

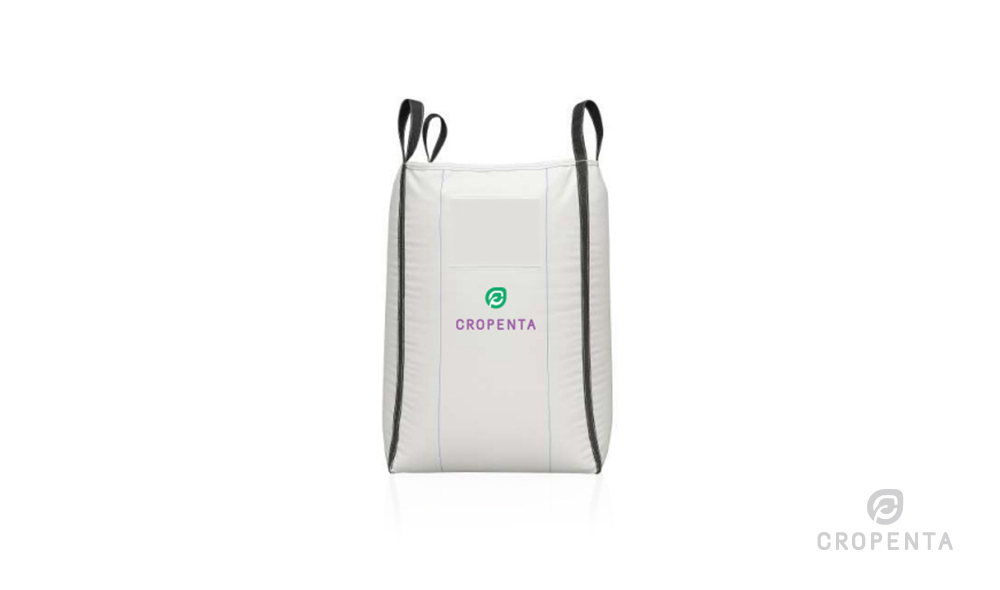

According to the product specification, the material is supplied in approximately 1,000 kg of product per 1 m³ big bag.

Commercial availability, batch-specific analytical data, logistics and documentation can be provided according to supply requirements.

Sulphur Raw Material for Professional Fertilizer Manufacturers

For producers of organic, organo-mineral and specialty fertilizers, Sulphur Cake provides a concentrated way to introduce sulphur into a broader fertilizer formulation.

Its value should be assessed at formulation level: the manufacturer determines how much sulphur is required, how the material interacts with the other ingredients and how the complete mixture performs during mixing, granulation, drying and subsequent application.

With 96% sulphur on a dry-matter basis and more than 70% dry matter, Sulphur Cake offers a concentrated sulphur ingredient for fertilizer production that can be evaluated as part of custom organic and organo-mineral fertilizer formulations.

Disclaimer: Product characteristics stated on this page are based on the applicable technical product specification. The suitability, inclusion rate, processing behaviour and final nutrient declaration of Sulphur Cake within a manufactured fertilizer must be determined by the fertilizer producer based on batch-specific analytical data, the complete formulation, manufacturing process, intended use and applicable fertilizer legislation. General scientific information regarding elemental sulphur oxidation and plant sulphur nutrition provides technical and agronomic context and should not be interpreted as a guaranteed performance characteristic of this specific product or of a finished fertilizer containing it.
